Home / Products / Wall Mount Cabinet / Welded Structure Double Section Wall Mount Cabinet

Welded Structure Double Section Wall Mount Cabinet Custom

Professional Production Rack, Server Rack And Other Accessories

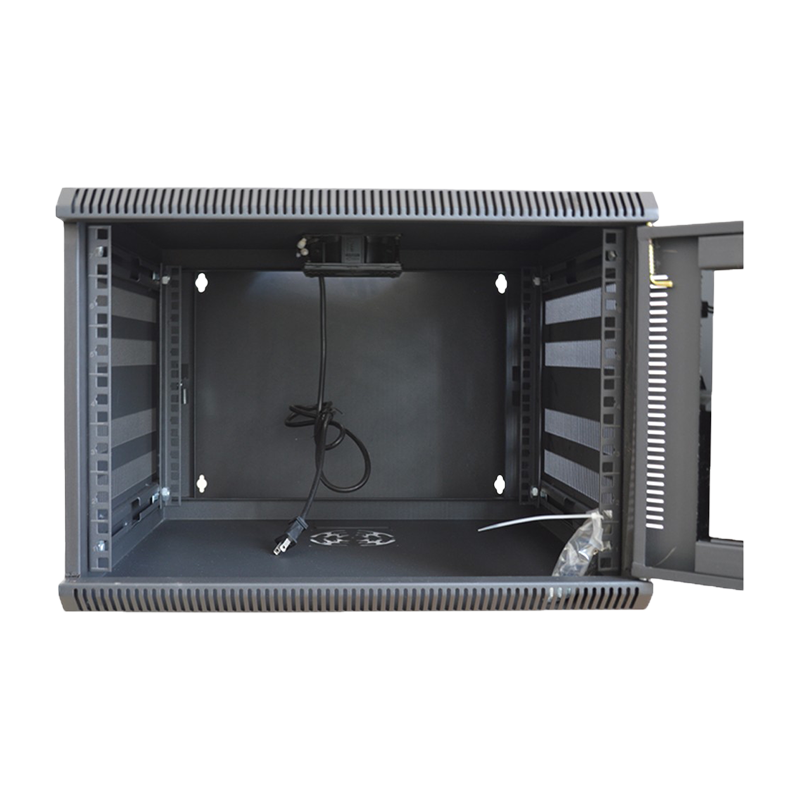

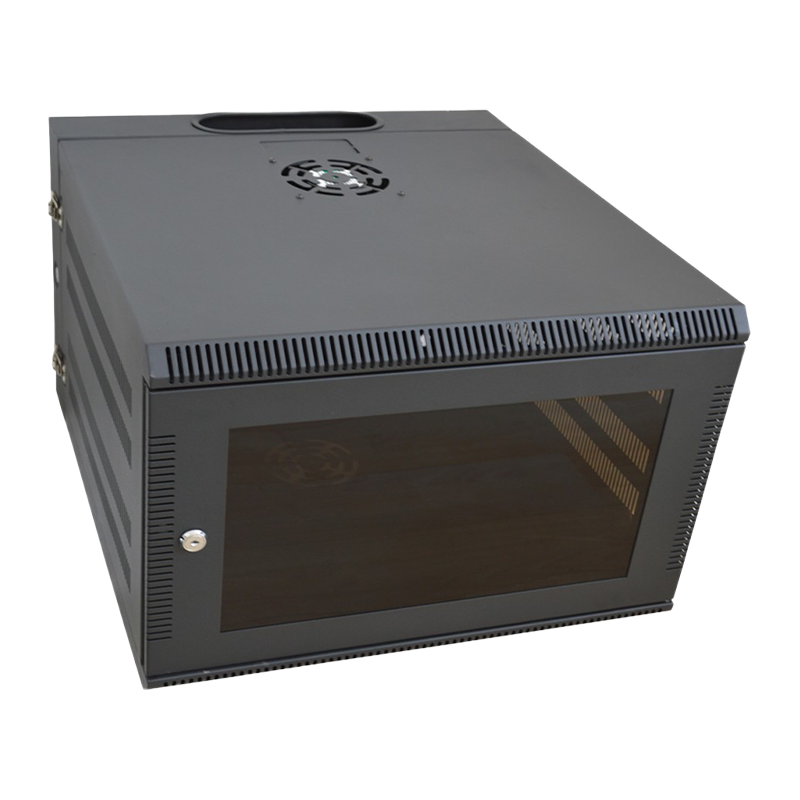

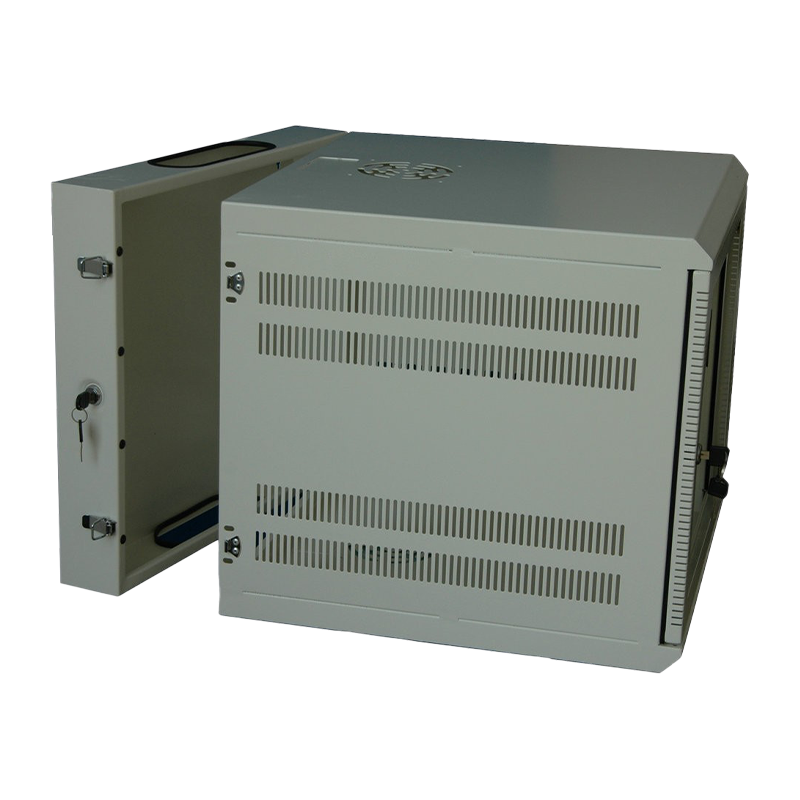

Welded Structure Double Section Wall Mount Cabinet

Standard:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet
  • Welded Structure Double Section Wall Mount Cabinet

Advantages

Feature:
1. weldedstructureandswing-out design, double section.
2. Standard cabinet equipped with adjustable 19”  mounting posts.
3. Strong synthetic glass front door, safe and convenient with lock.
4. Cable entry on both of the top cover and bottom plate.

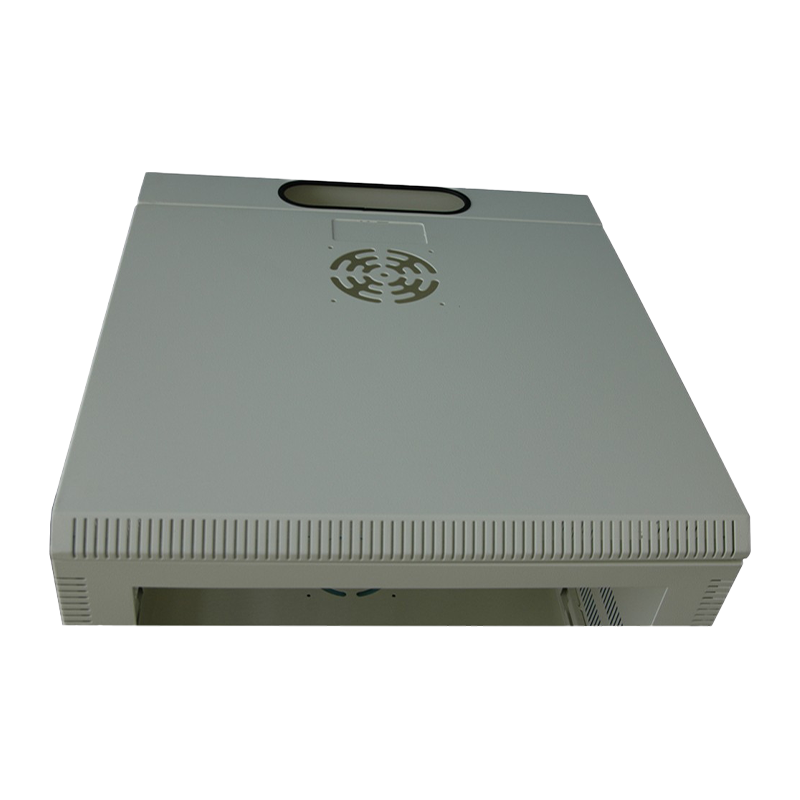

5. Fan hole available on the top cover.
6. Adjusting the mounting post in the sliding slot make a bigger adjustable range.
7. Cabinet can be fastened directly and conveniently onto the wall just with screws.
8. Height from 7U-16U, they are optional.
9. Shipps fully assembled.
Loading Capacity:
Static loading is 60kg

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce Welded Structure Double Section Wall Mount Cabinet products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales Welded Structure Double Section Wall Mount Cabinet, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our Welded Structure Double Section Wall Mount Cabinet products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters



 Main material:

Part

Thickness of Steel

Surface finish

Mounting post X2

Aluminum Plate 4.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Rear door

SPCC cold rolled steel 1.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Others

SPCC cold rolled steel 1.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


Main Specification (mm):


Item No.

U

width*depth*height

CYWL-05-07W5D5

7U

520*590*375

CYWL-05-09W5D5

9U

520*590*464

CYWL-05-12W5D5

12U

520*590*597

CYWL-05-15W5D5

15U

520*590*730

CYWL-05-16W5D5

16U

520*590*774


Color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd.

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd is China custom Welded Structure Double Section Wall Mount Cabinet suppliers and OEM/ODM Welded Structure Double Section Wall Mount Cabinet company. It is located in Xiangshan County, a beautiful peninsula in Zhejiang Province, the transportation is very convenient.

The company occupies a land area of 10000 square meters and has advanced production equipment such as hydraulic swing beam shears, hydraulic press brakes, laser cutting machine and others. The company has developed a specialized cabinet manufacturing base combining new product development, automatic production lines and powerful sales network.

The company has strong technical force and complete machinery. The quality of finished products and after-sales service is managed in compliance with ISO9000 international standard, quality service and unified service are provided for clients. At the same time. The company attaches importance to technical innovation and new product development. As a result, the product quality has continued to improve and products come with a wider range of specification.

The company shall follow its business philosophy of good quality, favorable price and attentive service. Here the whole company staff would like to extend their heartfelt thanks to all customers and others who have cared for and supported us over the years. We sincerely invite you to visit our company and give advice on our business.

Honor

The Honor
We Have Received.

Based on the development concept of "based on domestic and facing the world", the company keeps pace with the times, and is willing to join hands with domestic and foreign customers to develop together and create a better future.
