Welded Structure Wall Mount Cabinet Custom

Professional Production Rack, Server Rack And Other Accessories

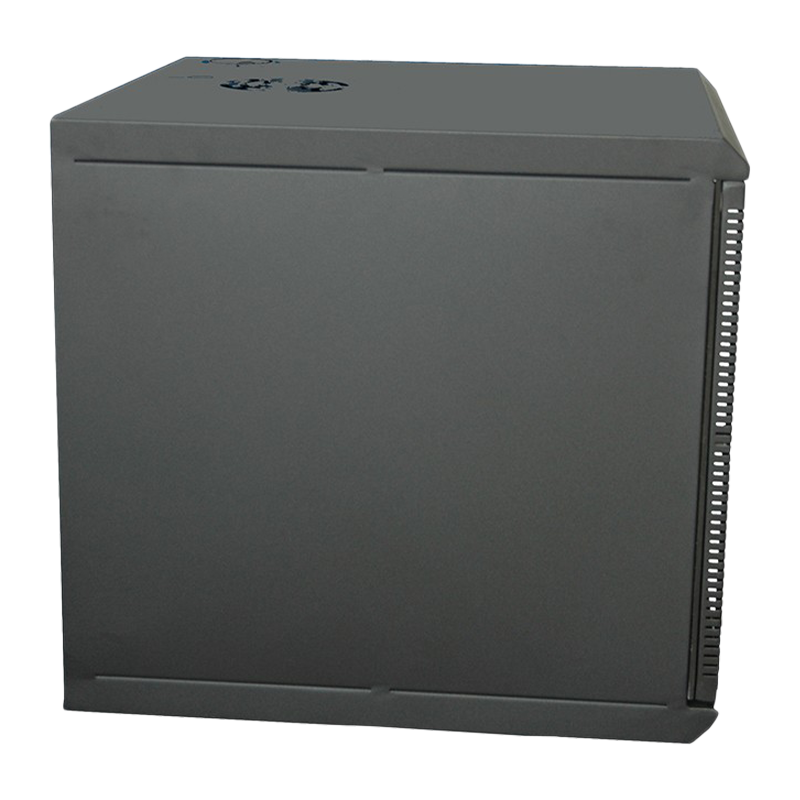

Welded Structure Wall Mount Cabinet

Standard:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet
  • Welded Structure Wall Mount Cabinet

Advantages

Feature:
1. Strong welded structure.
2. Standard cabinet equipped with adjustable 19” mounting posts.

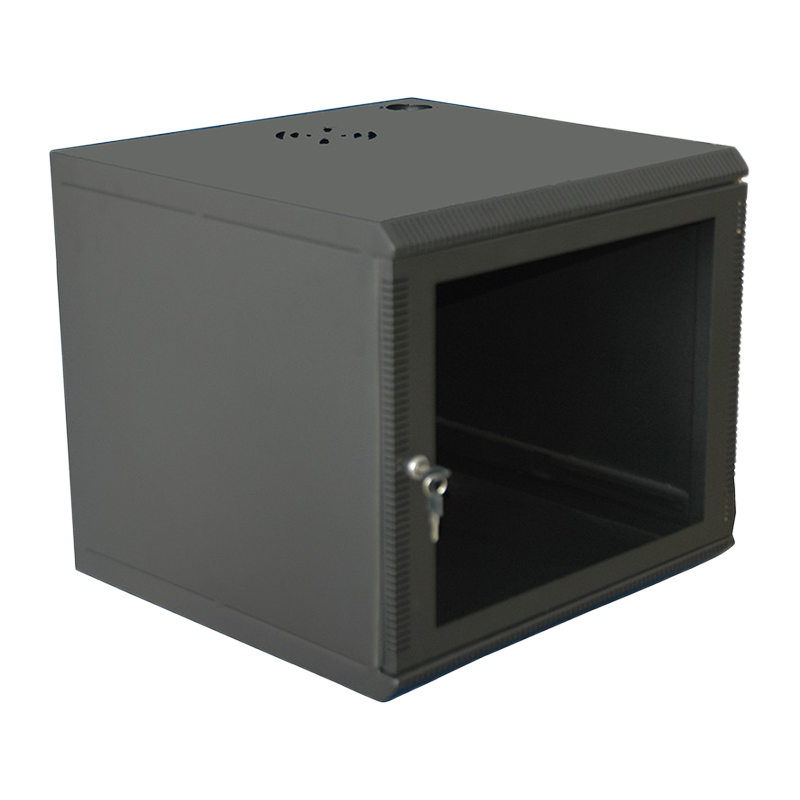

3. Strong synthetic glass front door, safe and convenient with lock.
4. Cable entry on both of the top cover and bottom plate.
5. Fan hole available on the top cover.
6. Adjusting the mounting post in the sliding slot make a bigger adjustable range.

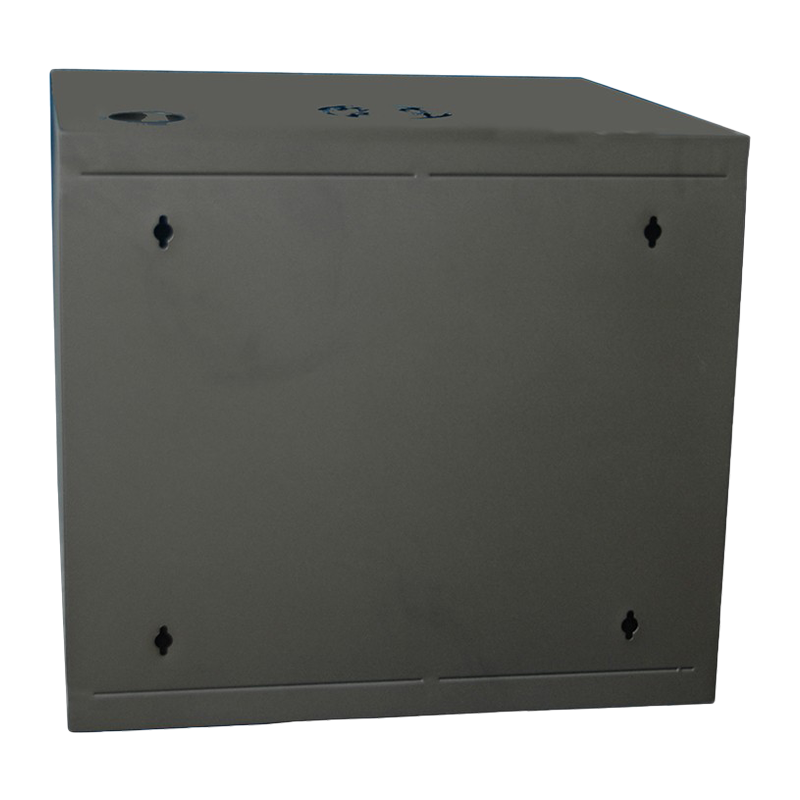

7. Cabinet can be fastened directly and conveniently onto the wall just with screws.
8. Height from 7U-16U, they are optional.
9. Ships fully assembled.
Loading Capacity:
Static loading is 60kg

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce Welded Structure Wall Mount Cabinet products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales Welded Structure Wall Mount Cabinet, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our Welded Structure Wall Mount Cabinet products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters



 Main material:

Part

Thickness of Steel

Surface finish

Mounting post X2

SPCC cold rolled steel 1.8mm

Degreasing, pickling, phosphoric, dip-coat primed, zinc coat

Others

SPCC cold rolled steel 1.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


Main Specification (mm):


Item No.

U

width*depth*height

CYWL-06-07W5D5

7U

520*508*375

CYWL-06-09W5D5

9U

520*508*464

CYWL-06-12W5D5

12U

520*508*597

CYWL-06-15W5D5

15U

520*508*730

CYWL-06-16W5D5

16U

520*508*774

Color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white
