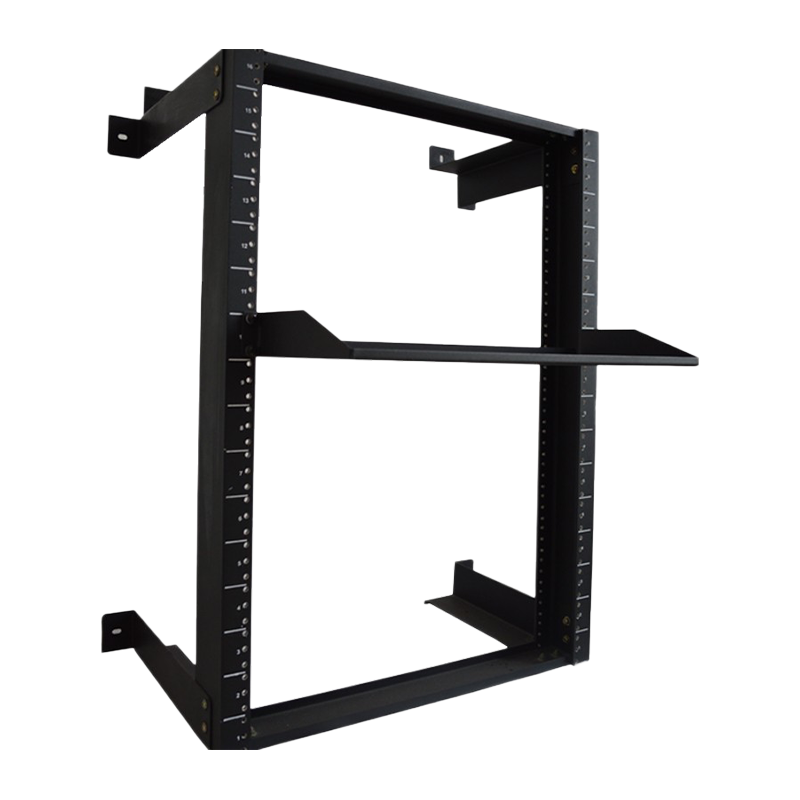

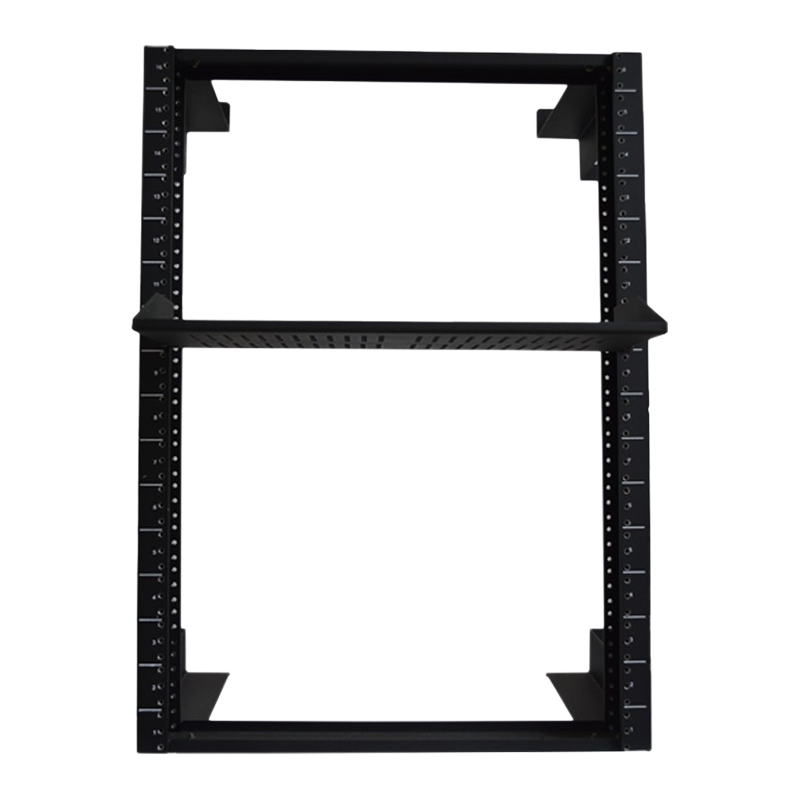

Fixed open frame wall rack


Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Fixed open frame wall rack
  • Fixed open frame wall rack
  • Fixed open frame wall rack
  • Fixed open frame wall rack
  • Fixed open frame wall rack
  • Fixed open frame wall rack

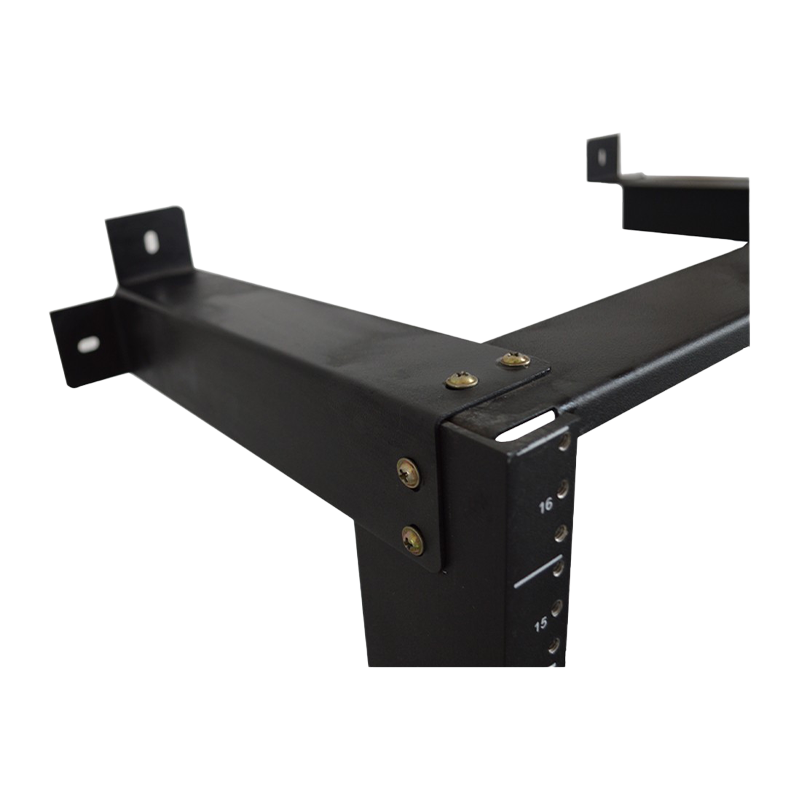

1."U"shaped rails 3x1 1/4tapped both front and rear with EIA compliant RMS spaceu.
2. Cabinet can be fastened directly and conveniently onto the wall just with screwsu.
3. A series accessories on your option, such us shelves, fan panel, cable management and so onu.

4. Meets or exceeds EIA-310D standardsu.

5. Height has 16U and 20U, they are optionalu.
6. Easy to assembleu.

7. Flat package, easy to carry and saving spaceu.

16U Loading Capacity:
Static loading is 80kg

20U Loading Capacity:
Static loading is 100kg


We have a strong R&D team, and we can develop and produce Fixed open frame wall rack products according to the drawings or samples the customers offered.


We have our own manufacturing plant, factory direct sales Fixed open frame wall rack, high quality and low price.


We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.


The company has advanced production equipment and strong research and development capabilities.


We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.


Based on high-grade and high-end markets, our Fixed open frame wall rack products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters


 Main material:


Thickness of Material

Surface finish

Mounting post

Aluminum 5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Fixing bracket

SPCC cold rolled steel 1.8mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Top and bottom jointing bar

Aluminum 3.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Main Specification (mm):

Item No.










Description  RAL9004 black
RAL7035 gray
RAL9010 white
