Home / Products / Open Frame Racks / Adjustable 4 Post Steel Open Frame Floor Rack

Adjustable 4 Post Steel Open Frame Floor Rack Custom

Professional Production Rack, Server Rack And Other Accessories

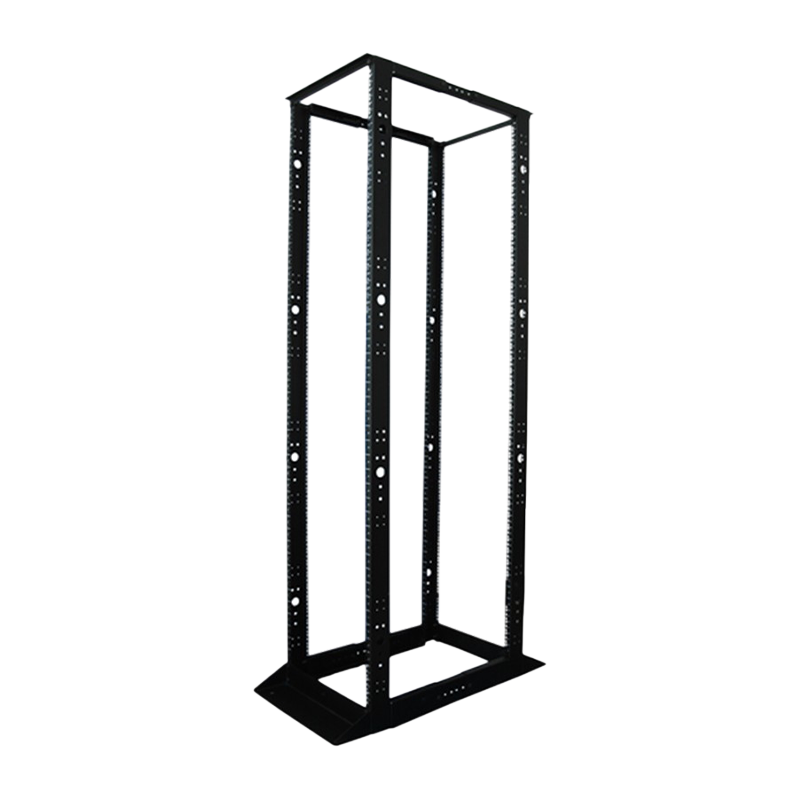

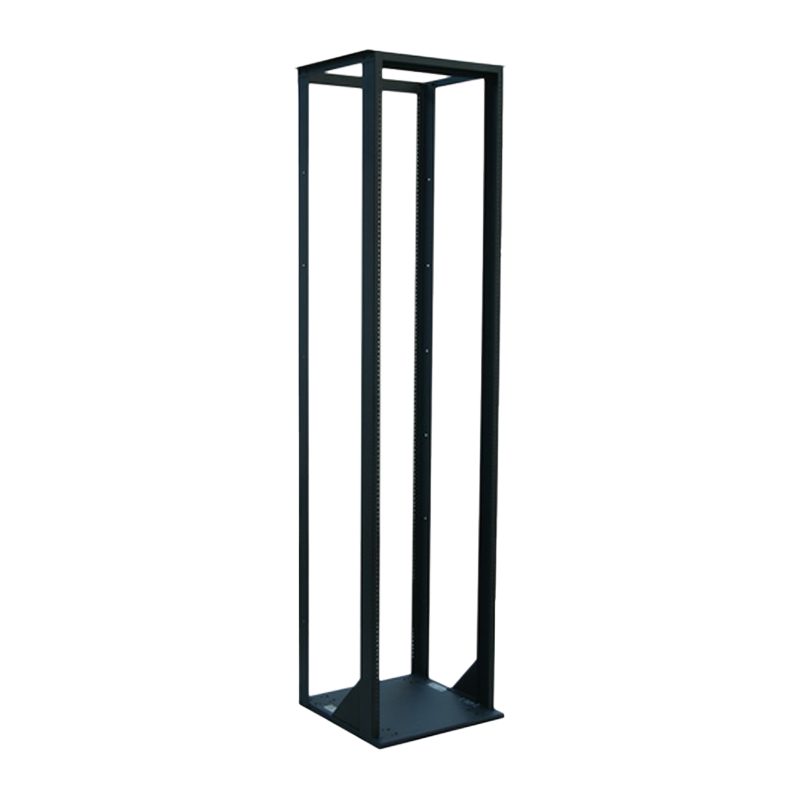

Adjustable 4 Post Steel Open Frame Floor Rack

Standard:

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack
  • Adjustable 4 Post Steel Open Frame Floor Rack

Advantages

Feature:
1. Standard open frame rack equipped with 19” mounting posts.

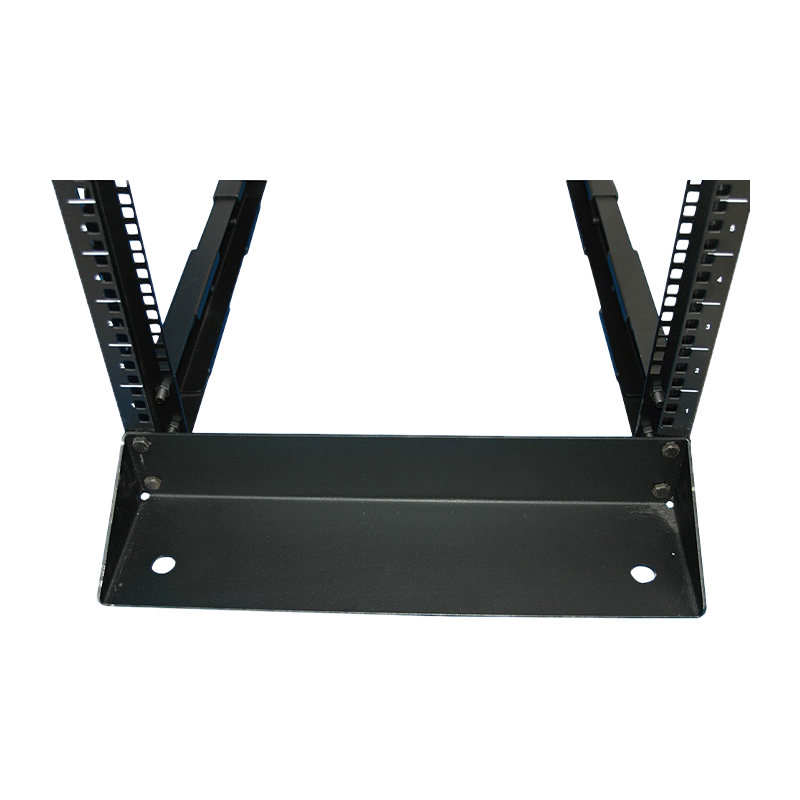

2. Base with perforated holes for floor anchoring.
3. Reinforced angled top brace supports.

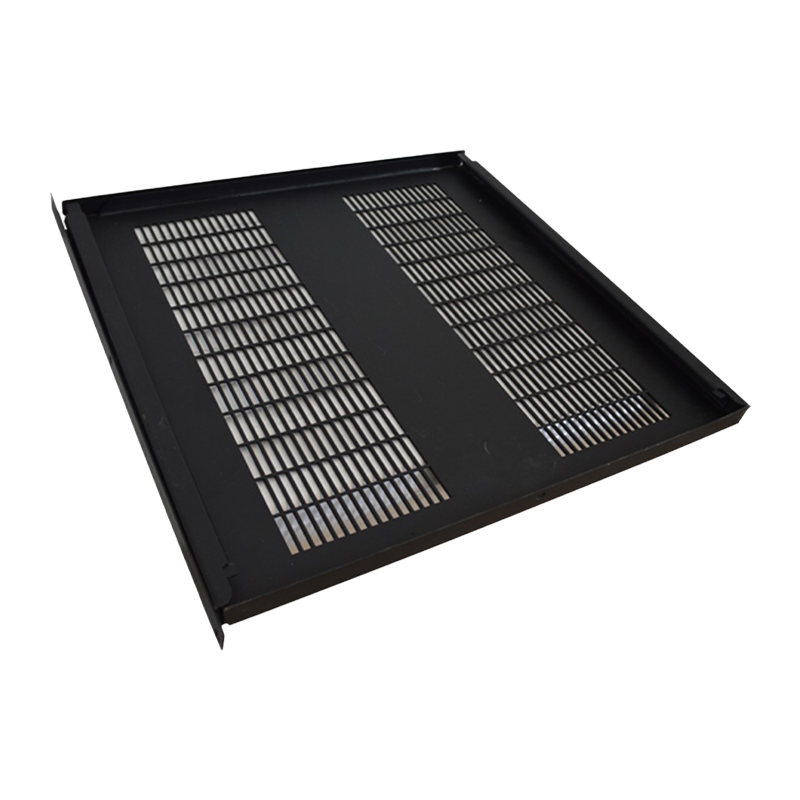

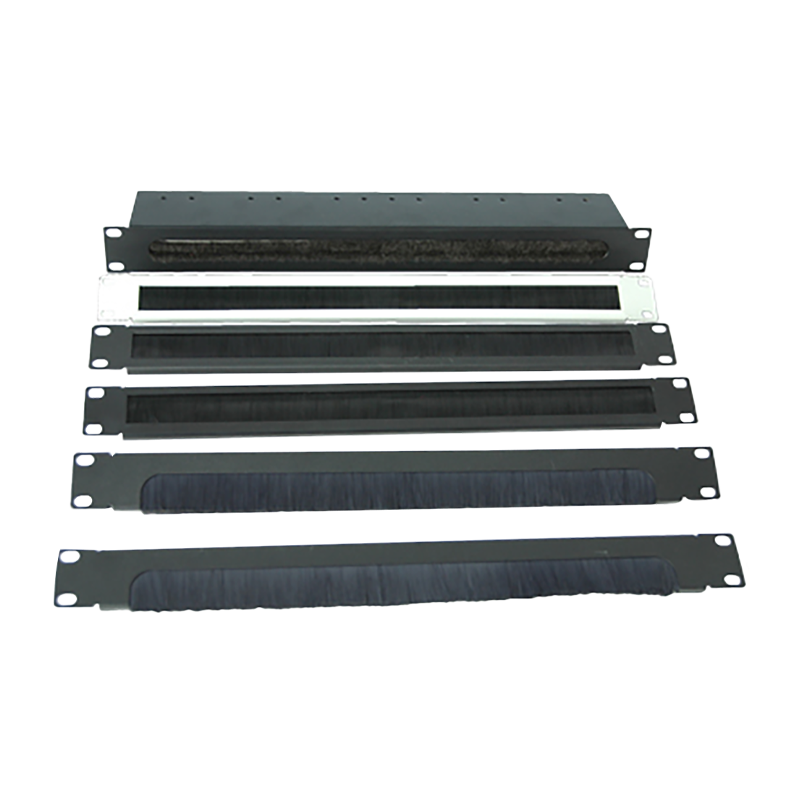

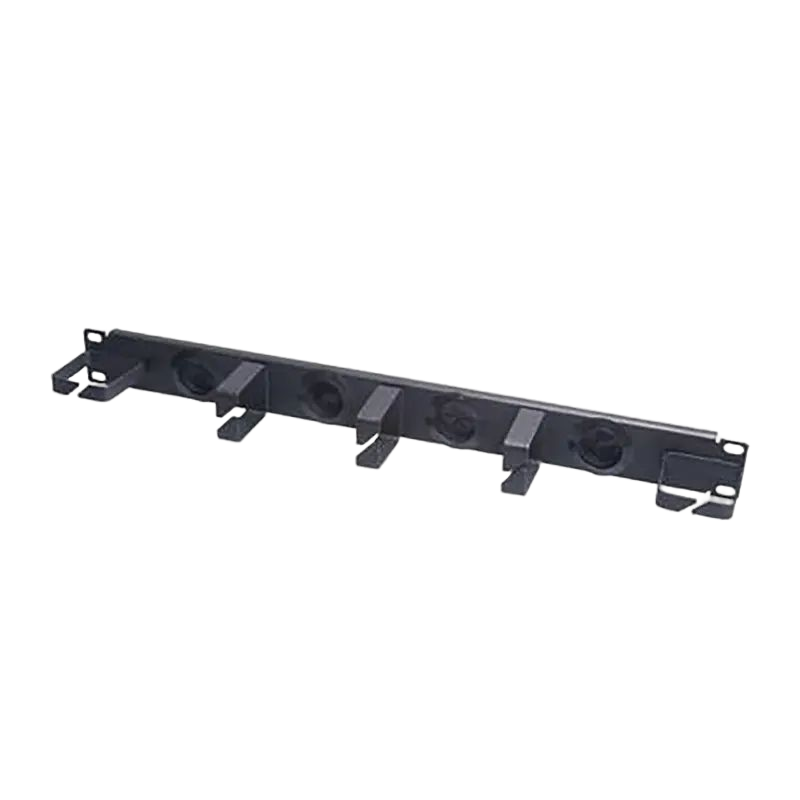

4. A series accessories on your option, such us shelves, fan panel, cable management and so on.

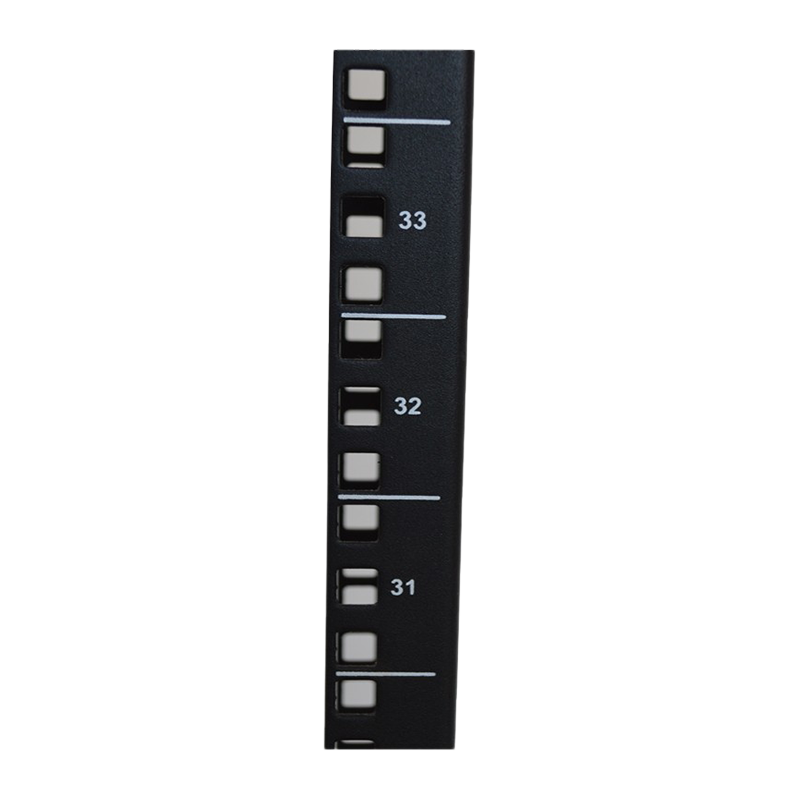

5. Both mounting post with U mark.
6. Height has 22U and 45U, they are optional.

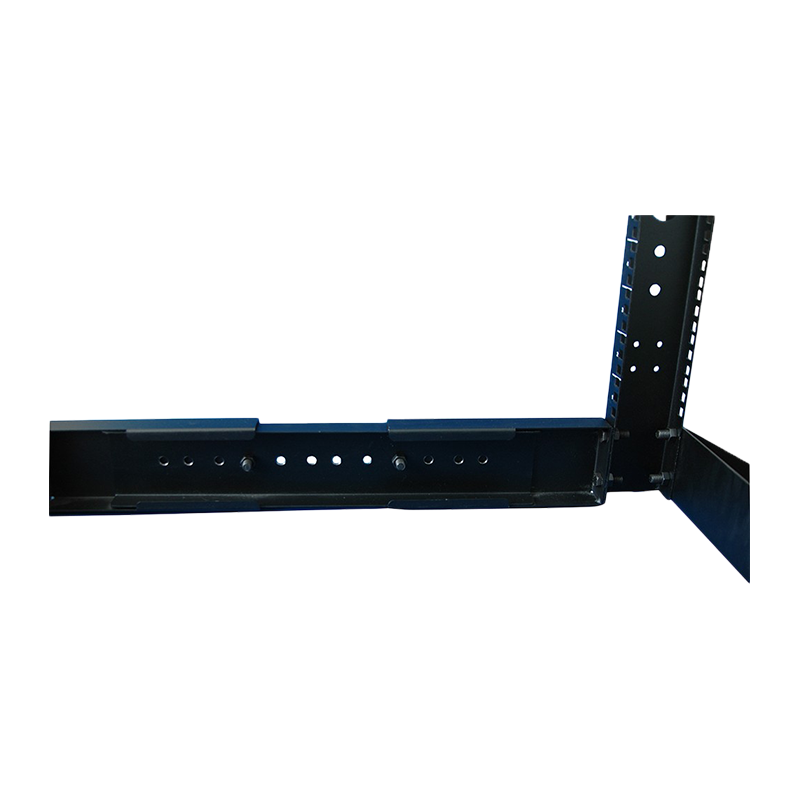

7. Adjustable at 24＂，26.5＂，29.125＂，31.5＂，34＂and 36＂depth.
8. Easy to assemble.
9. Flat package, easy to carry and saving space.

Loading Capacity:
22U Loading Capacity:
Static loading is 300kg
45U Loading Capacity:
Static loading is 600kg

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce Adjustable 4 Post Steel Open Frame Floor Rack products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales Adjustable 4 Post Steel Open Frame Floor Rack, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our Adjustable 4 Post Steel Open Frame Floor Rack products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters



 Main material:

Part

Thickness of Steel

Surface finish

Mounting post

SPCC cold rolled steel 1.8mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Base angle

SPCC cold rolled steel 3.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Top angle

SPCC cold rolled steel 3.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Adjustable space bar

SPCC cold rolled steel 1.8 mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


Main Specification (mm):

Item No.

U

width*depth*height

CYAC-03-22W5DA

22U

CYAC-03-45W5DA

45U



Color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd.

Xiangshan Chaoyu Machinery Manufacturing Co., Ltd is China custom Adjustable 4 Post Steel Open Frame Floor Rack suppliers and OEM/ODM Adjustable 4 Post Steel Open Frame Floor Rack company. It is located in Xiangshan County, a beautiful peninsula in Zhejiang Province, the transportation is very convenient.

The company occupies a land area of 10000 square meters and has advanced production equipment such as hydraulic swing beam shears, hydraulic press brakes, laser cutting machine and others. The company has developed a specialized cabinet manufacturing base combining new product development, automatic production lines and powerful sales network.

The company has strong technical force and complete machinery. The quality of finished products and after-sales service is managed in compliance with ISO9000 international standard, quality service and unified service are provided for clients. At the same time. The company attaches importance to technical innovation and new product development. As a result, the product quality has continued to improve and products come with a wider range of specification.

The company shall follow its business philosophy of good quality, favorable price and attentive service. Here the whole company staff would like to extend their heartfelt thanks to all customers and others who have cared for and supported us over the years. We sincerely invite you to visit our company and give advice on our business.

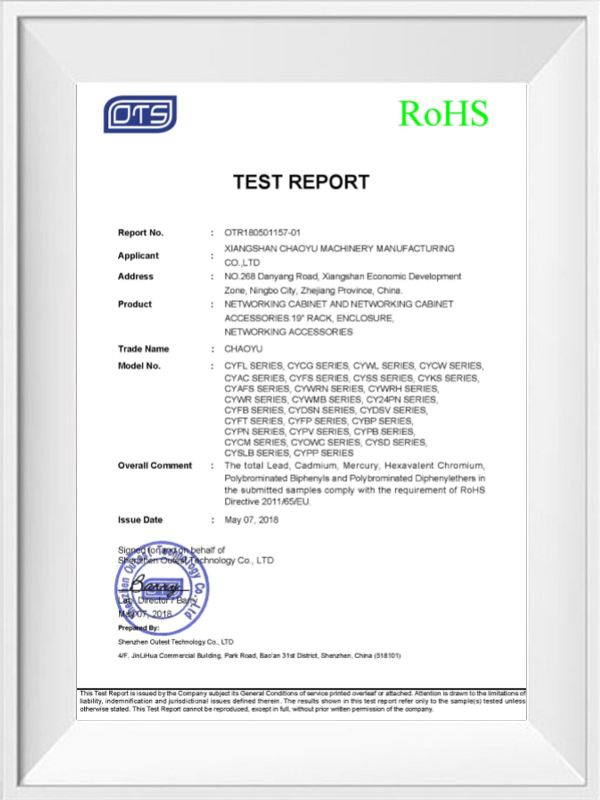

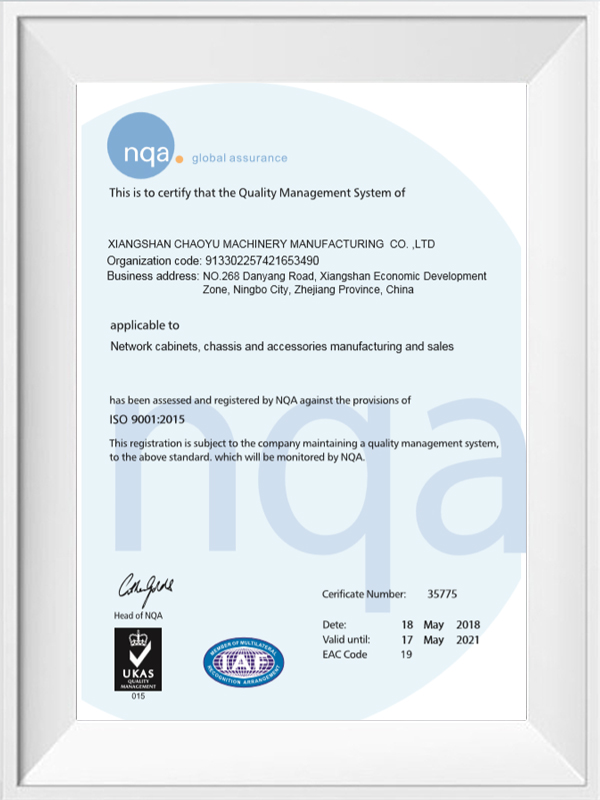

Honor
