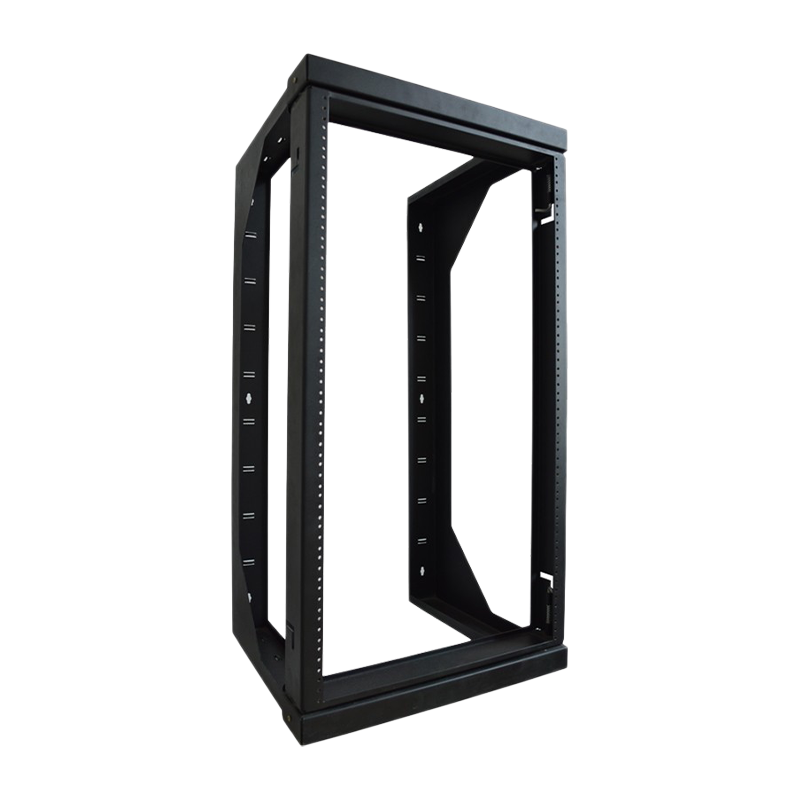

Swing Out Open Frame Wall Rack

Standard:
Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack
  • Swing Out Open Frame Wall Rack

Advantages

Feature:
1. "U"shaped rails 3x1 1/4tapped both front and rear with EIA compliant RMS spaceu.

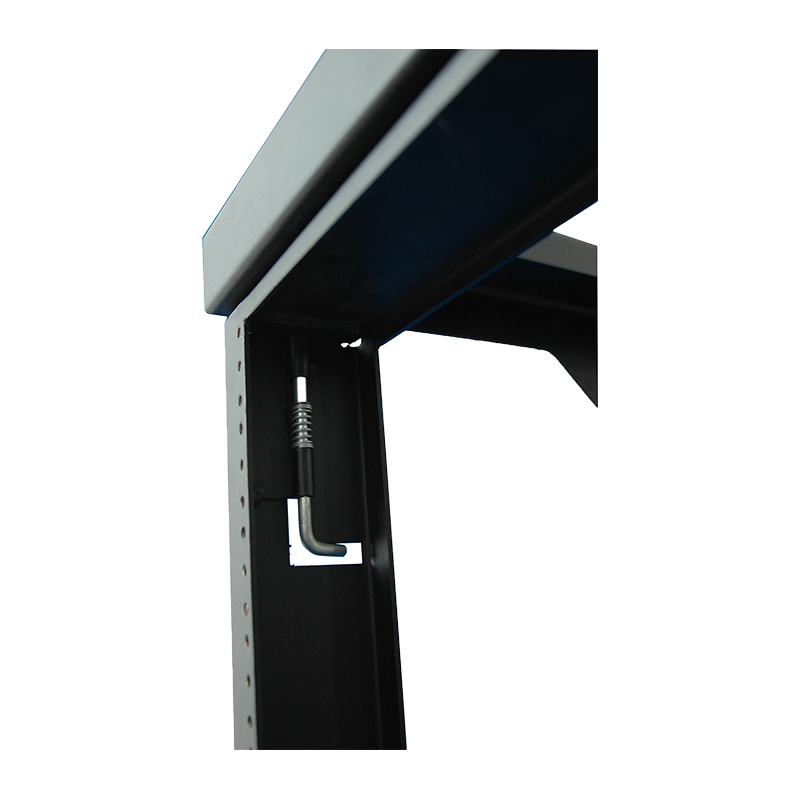

2. The front section is reversible for right or left side openingu3.
3. The rear section can be easily separated from the mounting section for easy of installationu.
4. Cabinet can be fastened directly and conveniently onto the wall just with screwsu.
5. A series accessories on your option, such us shelves, fan panel, cable management and so onu.
6.  Meets or exceeds EIA-310D standardsu.
7. Height from 12U to 25U, they are optionalu.
8. Easy to assembleu.
9. Flat package, easy to carry and saving spaceu.

12U Loading Capacity:
Static loading is 30kg


20U Loading Capacity:
Static loading is 40kg


25U Loading Capacity:
Static loading is 50kg

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce Swing Out Open Frame Wall Rack products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales Swing Out Open Frame Wall Rack, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our Swing Out Open Frame Wall Rack products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters



 Main material:

Part

Thickness of Material

Surface finish

Mounting rack frame

SPCC cold rolled steel 3.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Rear mounting bracket

SPCC cold rolled steel 1.8mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


Main Specification (mm):

Item No.

U

width*depth*height

CYAC-05-12W5D4

12U

524*461*428

CYAC-05-20W5D4

20U

524*461*784

CYAC-05-25W5D4

25U

524*461*1006

Color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white
