4 Post Steel Open Frame Floor Rack Custom

Professional Production Rack, Server Rack And Other Accessories

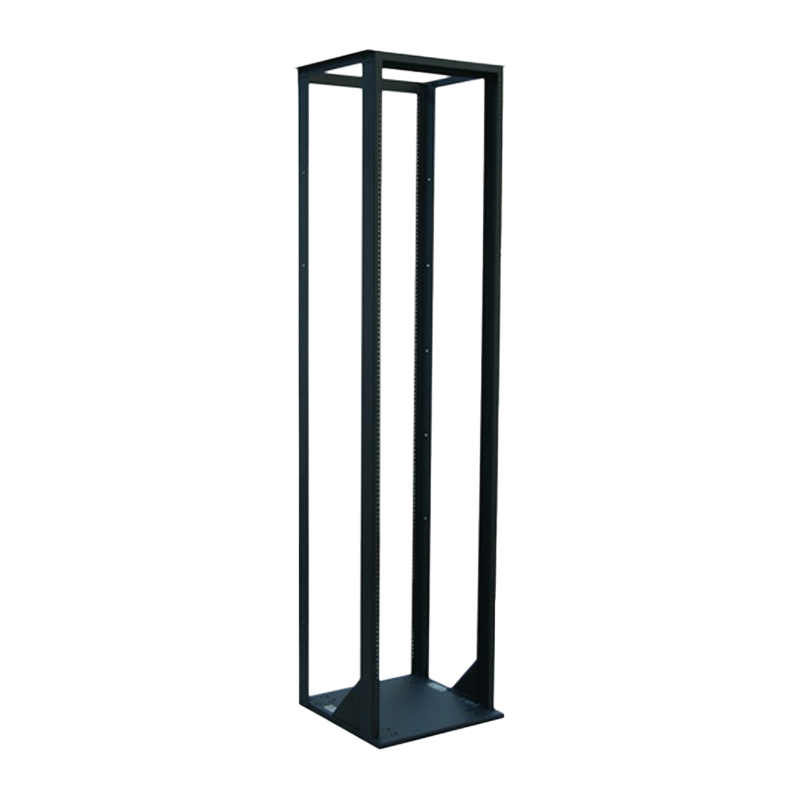

4 Post Steel Open Frame Floor Rack

Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PART7,GB/3047.2-92

  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack
  • 4 Post Steel Open Frame Floor Rack

Advantages

Feature:
1. Standard open frame rack equipped with 19” mounting posts.

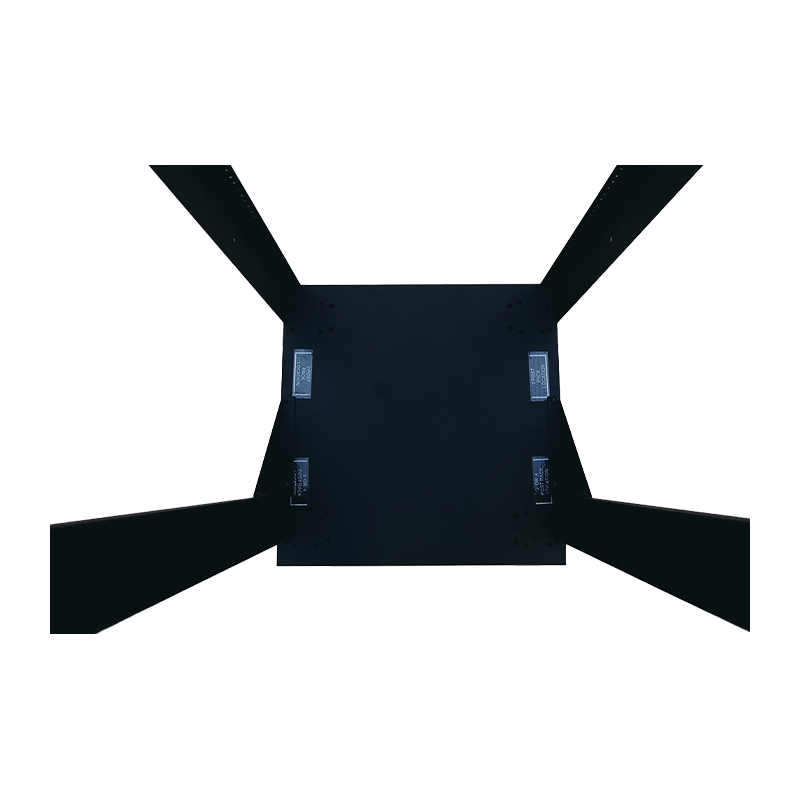

2. Base with perforated holes for floor anchoring.

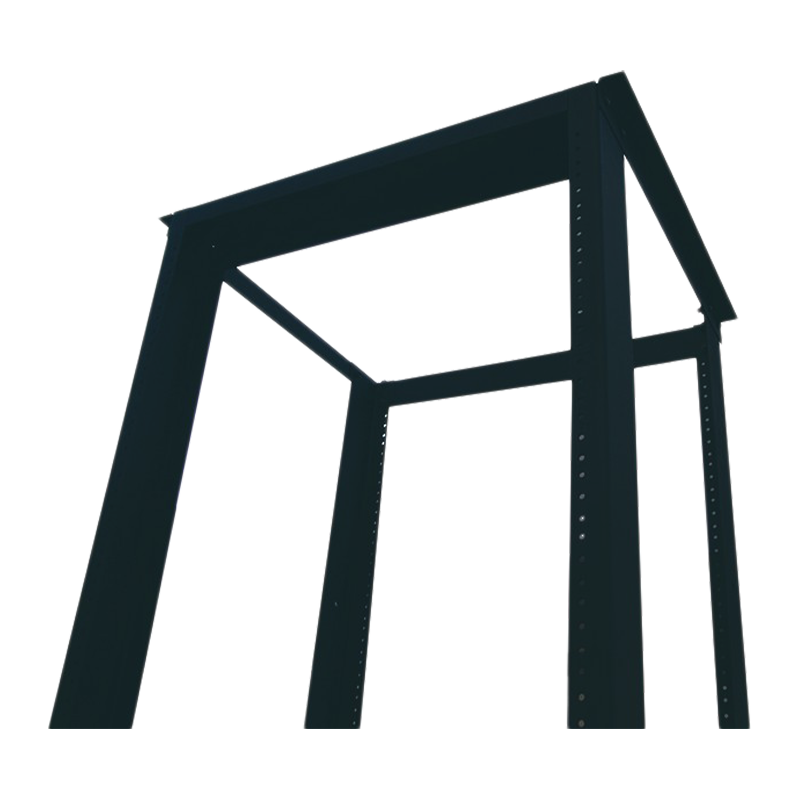

3. Reinforced angled top brace supports.
4. A series accessories on your option, such us shelves, fan panel, cable management and so on.
5. Both mounting post with U mark.
6. Height has 22U and 45U, they are optional.

7. Easy to assemble.
8. Flat package, easy to carry and saving space.

Static loading: 200 KGS

CUSTOMIZATION

We have a strong R&D team, and we can develop and produce 4 Post Steel Open Frame Floor Rack products according to the drawings or samples the customers offered.

COST

We have our own manufacturing plant, factory direct sales 4 Post Steel Open Frame Floor Rack, high quality and low price.

QUALITY

We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.

MULTIFORMITY

The company has advanced production equipment and strong research and development capabilities.

CAPACITY

We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.

SERVICE

Based on high-grade and high-end markets, our 4 Post Steel Open Frame Floor Rack products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters



 Main material:

Part

Thickness of Steel

Surface finish

Mounting post

SPCC cold rolled steel 2.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Base angle

SPCC cold rolled steel 3.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Top angle

SPCC cold rolled steel 3.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Space bar

SPCC cold rolled steel 1.8mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


Main Specification (mm):

Item No.

U

width*depth*height

CYAC-D6-22W5D5

22U


W508*D515*22U

CYAC-D6-45W5D5

45U


W508*D515*45U



Color:

Description  RAL9004 black
RAL7035 gray
RAL9010 white
