Easy-Assembly Wall Mount Cabinets

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41494,PART7,GB/3047.2-92

  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets
  • Easy-Assembly Wall Mount Cabinets


1. Strong welded structure.

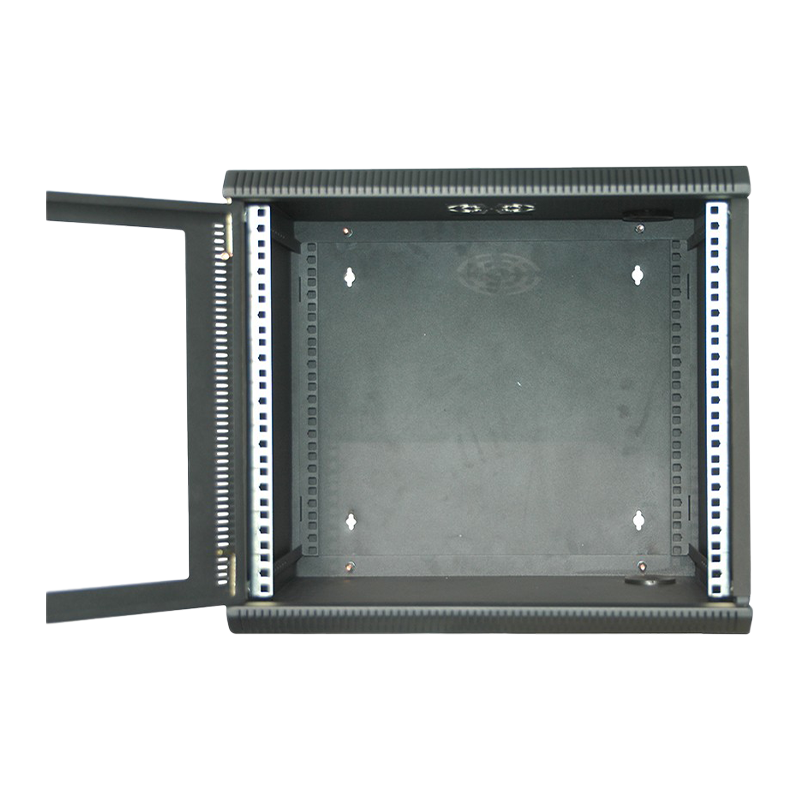

2. Standard cabinet equipped with adjustable 19”  mounting posts.

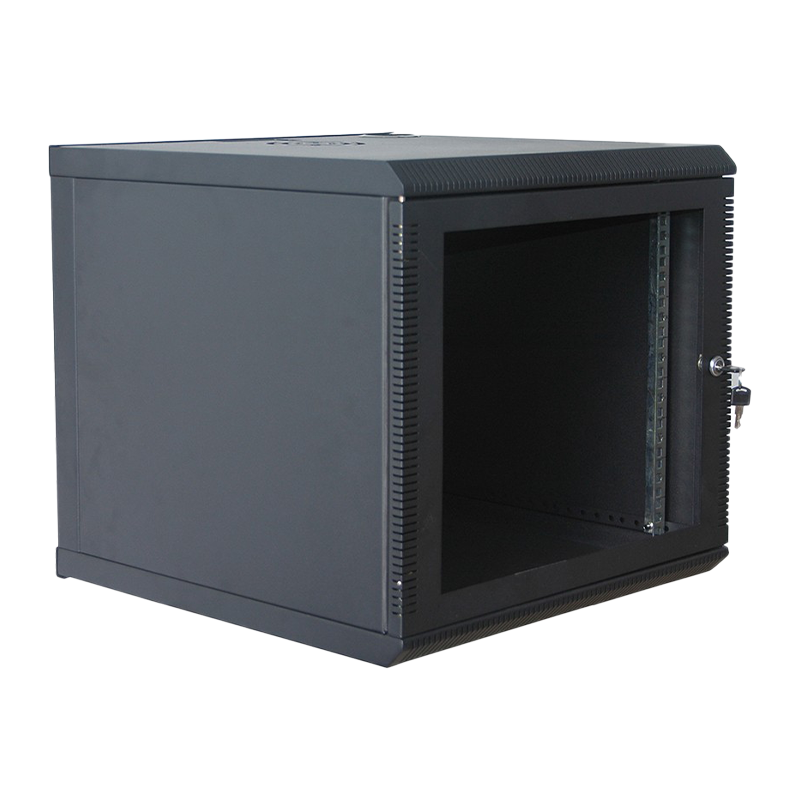

3. Strong tempered glass front door, safe and convenient with lock.

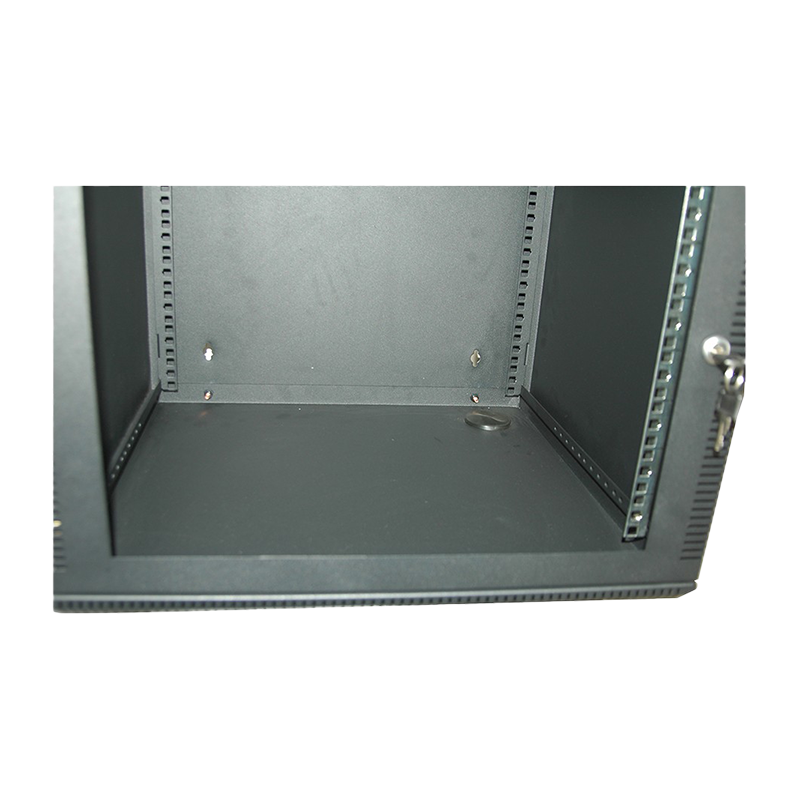

4. Cable entry from not only both of the top cover and bottom plate, but also from the back.

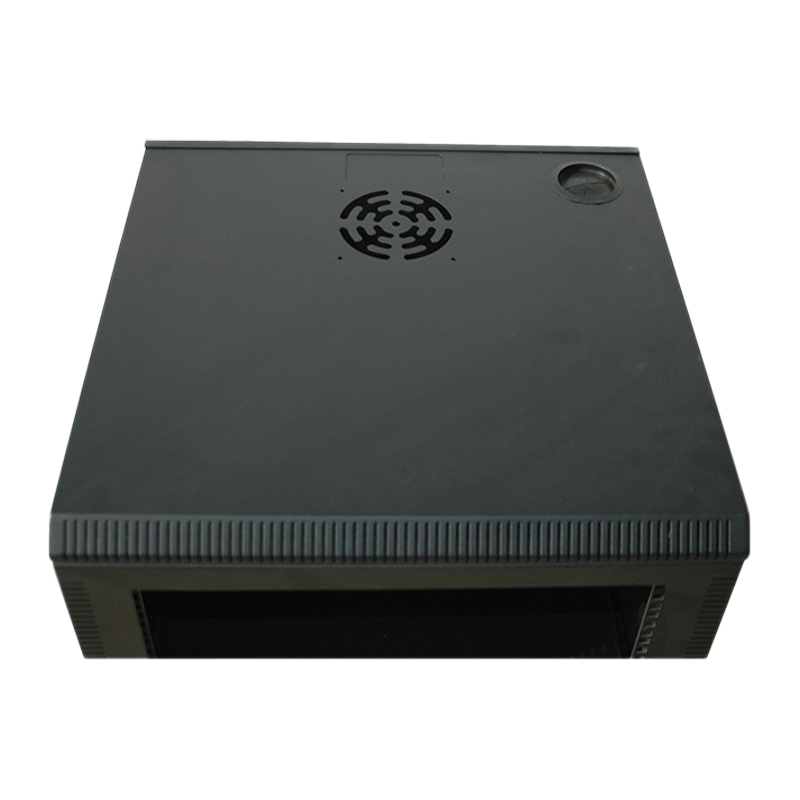

5. Fan hole available on both of the top cover and the bottom plate.
6. Cabinet can be fastened directly and conveniently onto the wall just with screws.
7. Height from 6U-12U, depth 150mm and 300mm,they are optional.
8. Ships fully assembled.
Loading Capacity:
Static loading is 60kg


We have a strong R&D team, and we can develop and produce Easy-Assembly Wall Mount Cabinets products according to the drawings or samples the customers offered.


We have our own manufacturing plant, factory direct sales Easy-Assembly Wall Mount Cabinets, high quality and low price.


We have our own finished product inspection system and advanced quality inspection equipment to ensure product quality.


The company has advanced production equipment and strong research and development capabilities.


We introduce advanced production equipment and processing technology from abroad to ensure production efficiency and product quality.


Based on high-grade and high-end markets, our Easy-Assembly Wall Mount Cabinets products meet international standards and are mainly exported to Europe, America, Southeast Asia and other countries.

Device parameters


 Main material:


Thickness of Steel

Surface finish

Mounting post X2

SPCC cold rolled steel 1.8mm

Degreasing, pickling, phosphoric, dip-coat primed, zinc coat

Mounting post X2

SPCC cold rolled steel 1.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Rear plate

SPCC cold rolled steel 1.5mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat


SPCC cold rolled steel 1.0mm

Degreasing, pickling, phosphoric, dip-coat primed, powder coat

Main Specification (mm):

Item No.



















Description  RAL9004 black
RAL7035 gray
RAL9010 white
